INSULATED GLASS

Insulated Glass is a kind of hollowed glass made of two or more pieces of glass sheets separated by aluminum frame that filled with molecular sieve (drying agent). The frame is stuck and sealed by butyl glue on the glass surfaces and Thiokol or silica gel seals all outside edges. Filling gas inside the glass cavity can strengthen its sound insulation property efficiently.

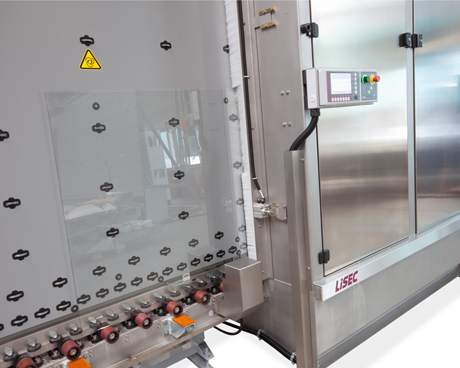

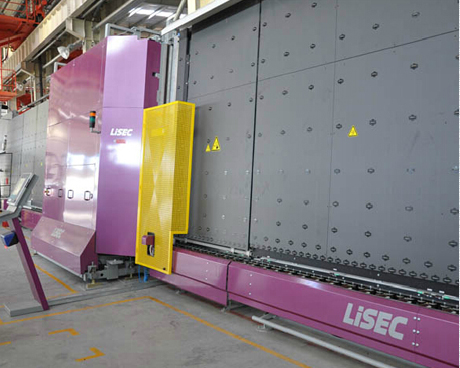

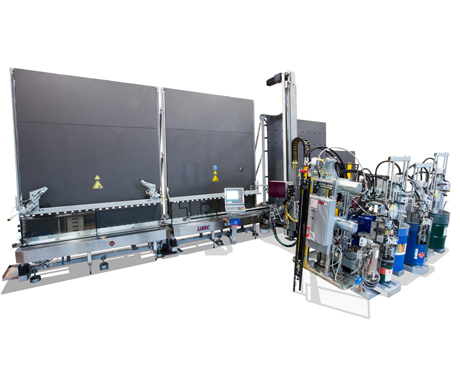

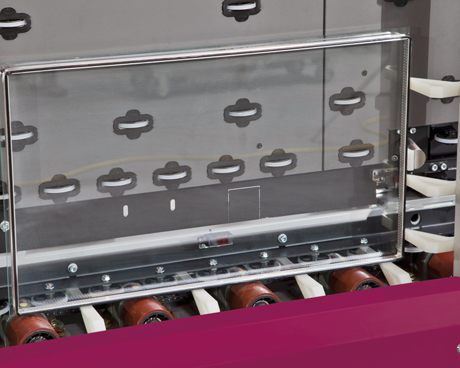

With several imported insulated glass production lines from Lisec of Austria, we professionally produce all kinds of insulated glass with double or more layers, especially those with frames and dot point holes applicable to the modern architectural designs.

Properties:

1.Energy saving: Because K-value (coefficient of heat conduction) of insulated glass is lower than single glass (K-value of single glass is 5.8, while that of common insulated glass is 3.0), energy consumption will be greatly reduced if insulted glass is used especially in air conditioning and heating environment.

2.Sound insulating: a window with insulated glass can reduce noise level to RW-45dB indoors from RW-86dB outdoors. It's what single glass cannot perform.

3.Safety: for the structure of double glazing, insulated glass results in higher resistance of wind and impact, which is much suitable for high-rise coastal buildings, trains and ships.

4.Antidewing: for its lower humidity permeability, insulated glass will not dew even circumstanced a big temperature difference between indoor and outdoor. In winter with such a circumstance, doors and windows made of single glass will dew but those of insulated glass will not, which can provide you a comfortable interior environment.

Application:

Door and window glass for building,Door and window glass for train, ship, busDoor glass of refrigerator, on-show cabinet

IGU Perforamce Data

  • Product Type :

    Low-E Glass
  • Thickness(mm):

    3mm 4mm 5mm 6mm 8mm
  • Visible Light (Transmittance%) :

    75% 74% 74% 73% 71%
  • Visible Light (Reflectance% ) Outside :

    17% 16% 17% 16% 15%
  • Visible Light (Reflectance% ) Inside :

    18% 17% 17% 17% 16%
  • Solar Energy(Transmittance%) :

    59% 56% 55% 52% 47%
  • Solar Energy(Reflectance%) :

    15% 14% 14% 13% 12%
  • Solar Energy(UV Transmittance%) :

    45% 42% 41% 37% 32%
  • U-Factor(W/m2.K) Air:

    1.9 1.9 1.9 1.8 1.8
  • U-Factor(W/m2.K) Ar:

    1.6 1.6 1.6 1.5 1.5
  • Solar Heat Gain Coefficient(SHGC) :

    0.65 0.63 0.63 0.62 0.58
  • Shading Coefficient(SC) :

    0.75 0.73 0.73 0.71 0.67

Product pictures
