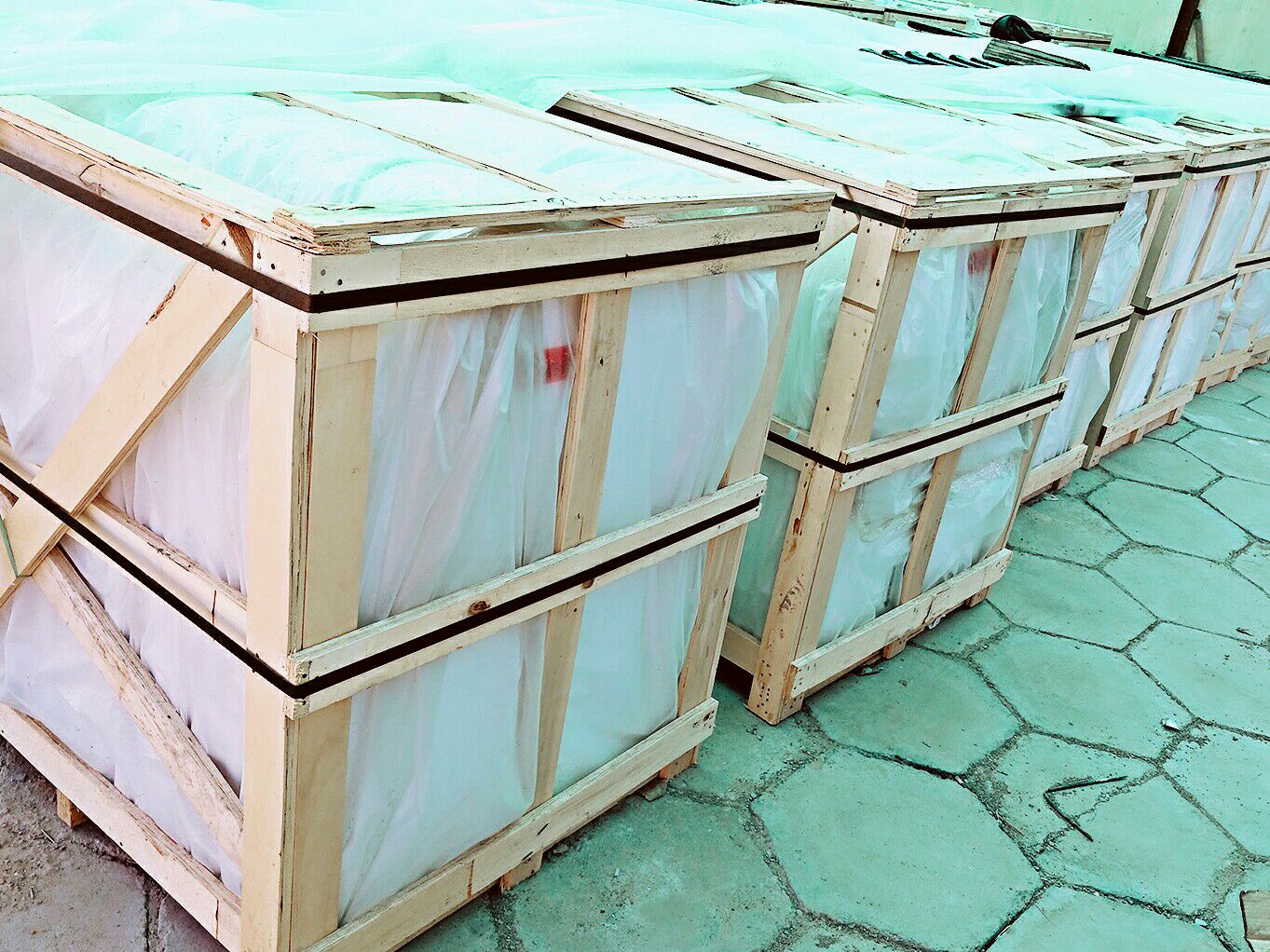

Plywood crate package:
˙Thickness of plywood minimum can match 20mm.
˙All stand point using 40mm plywood board minimum.
˙Each crate strengthened with 5type metal straps structured as "#" width min 32mm, plus 2 plastic straps in between.
˙Each crate to be clearly marked a packing label showing product name, specification, loading pieces.

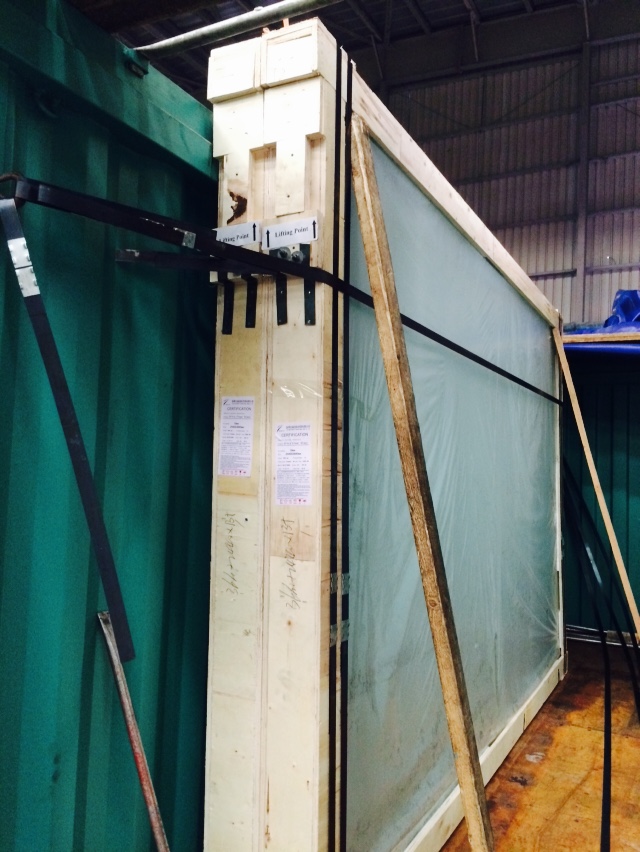

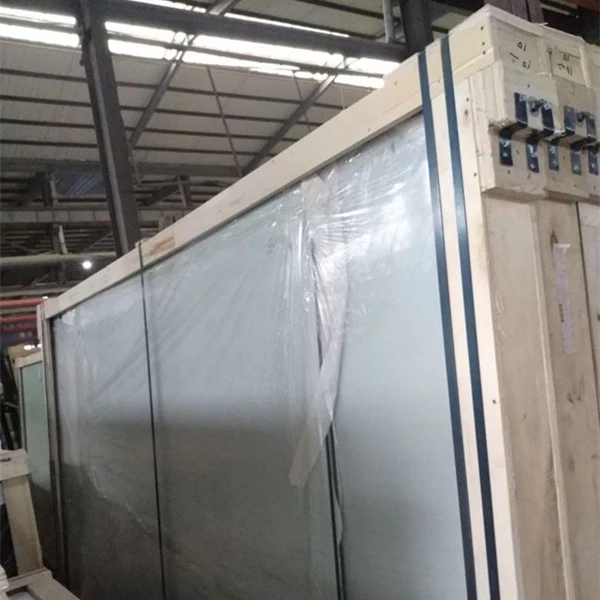

End caps
˙Thickness of ply minimum can match 20mm.
˙All lifting points to be constructed as “I-shaped” using 40mm min.
˙Each end cap strengthened with 4 metal straps width min 32mm.
˙Each end cap to be clearly marked a label showing its product name, specification, loading pieces.
˙Lifting points to be clearly marked on each end cap

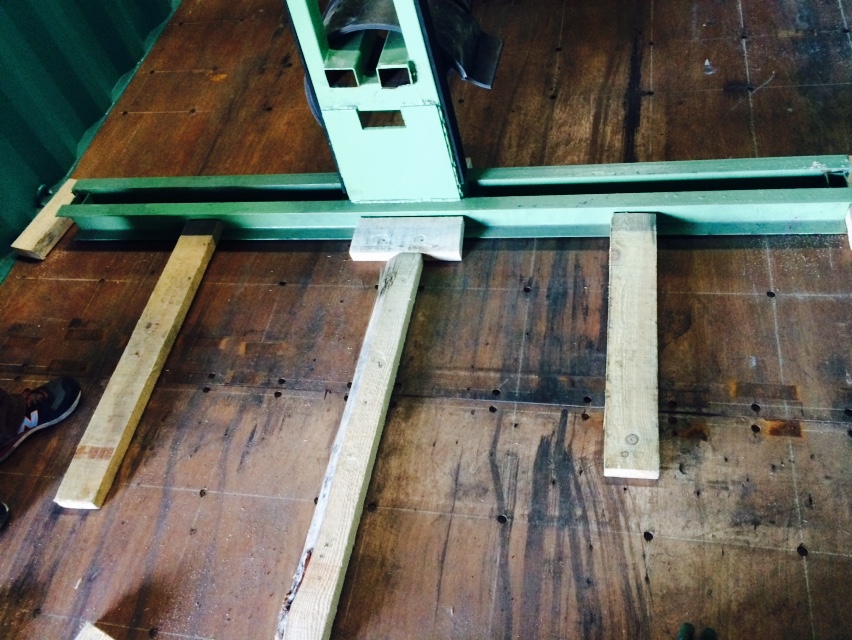

A-frame:
˙Custom made by our own factory which has being used for exporting for nearly 5 years.
˙End braces to stop glass sliding forward and back.
˙Top of clamp showing where metal strapping loops to hold in place.

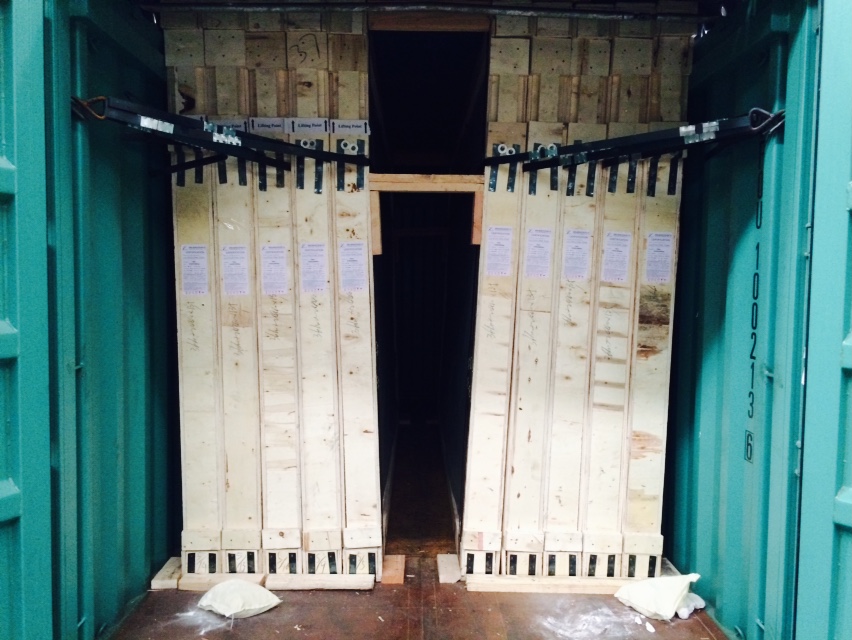

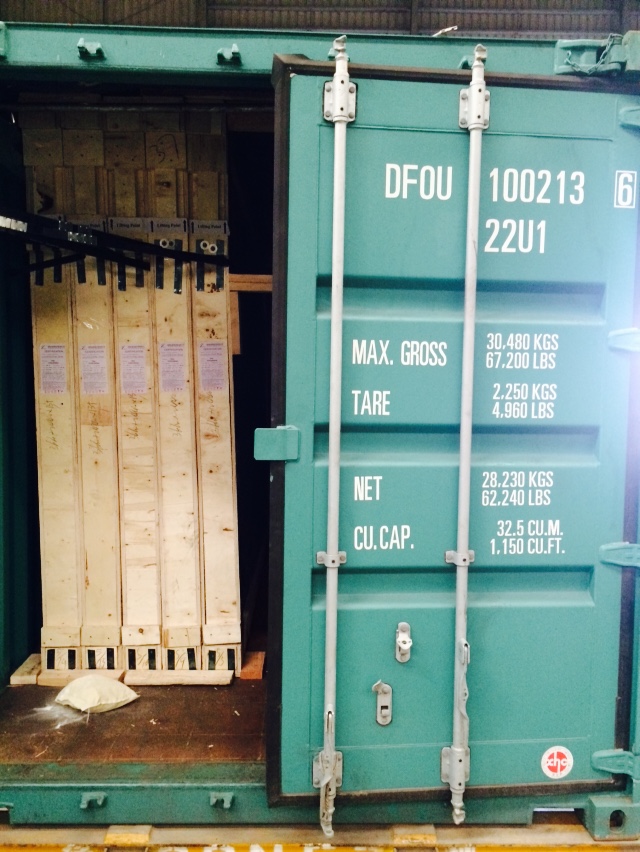

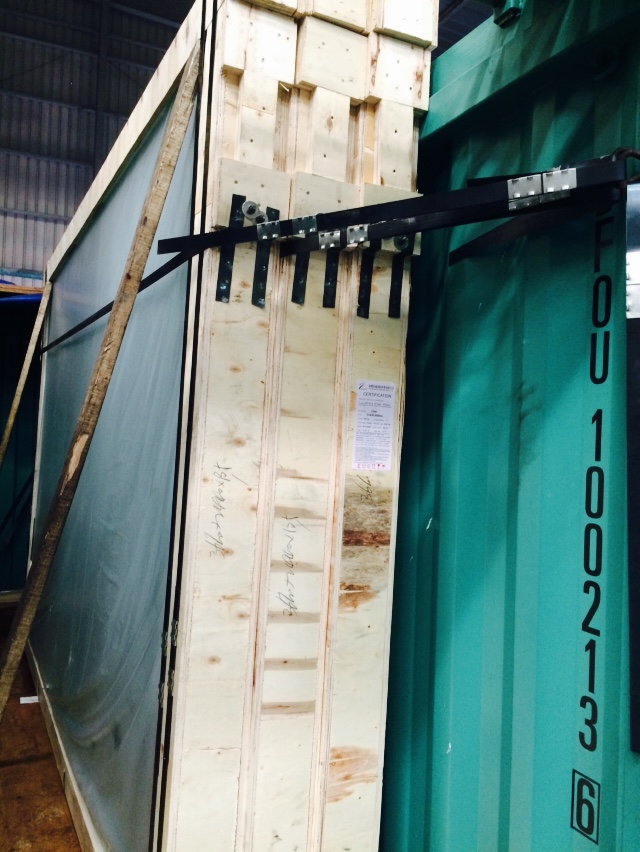

End caps loading
˙All end caps stacked for shipping against side walls of containers are to be individually strapped as per attached photos.
˙To avoid temperature differences in both hemispheres, 4 bags of weight 1 kg moisture proof powder added through front to back of the container.

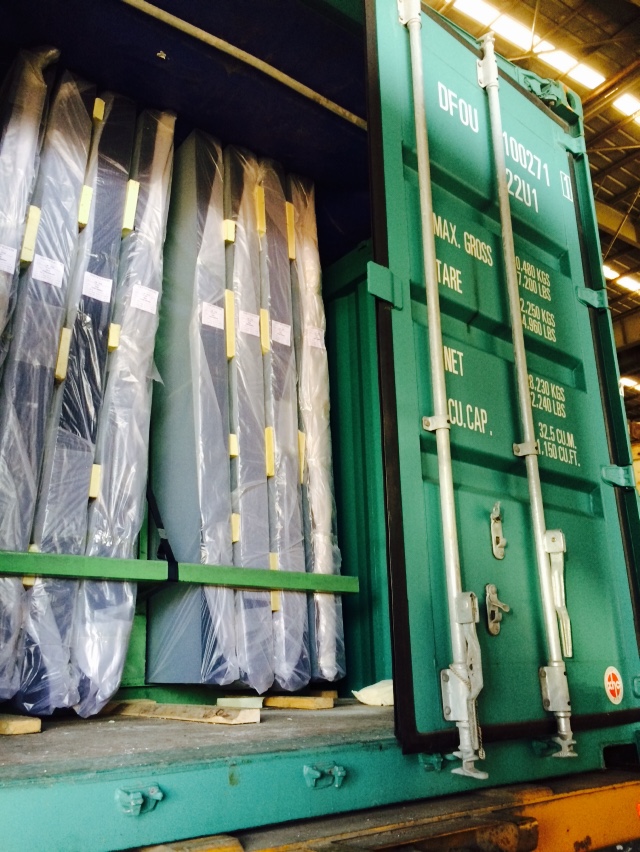

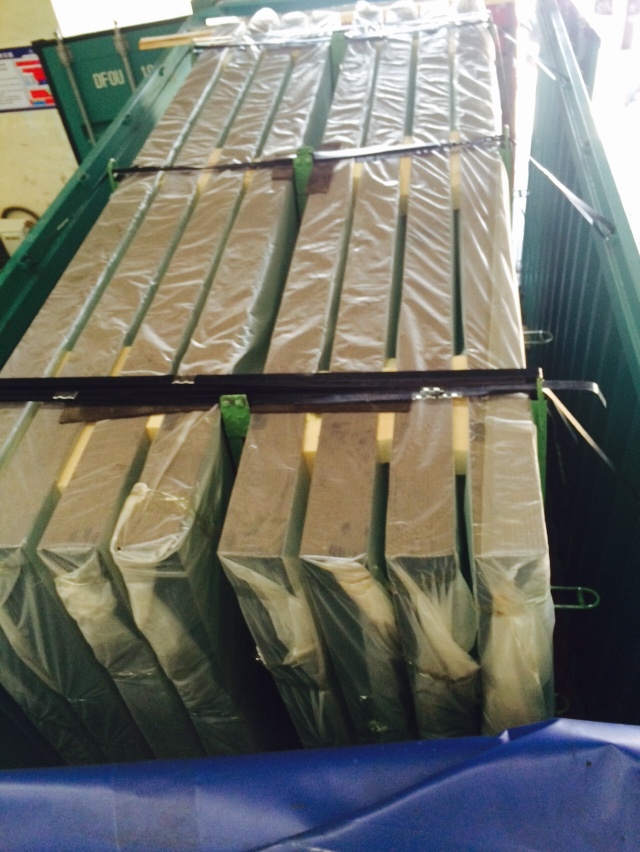

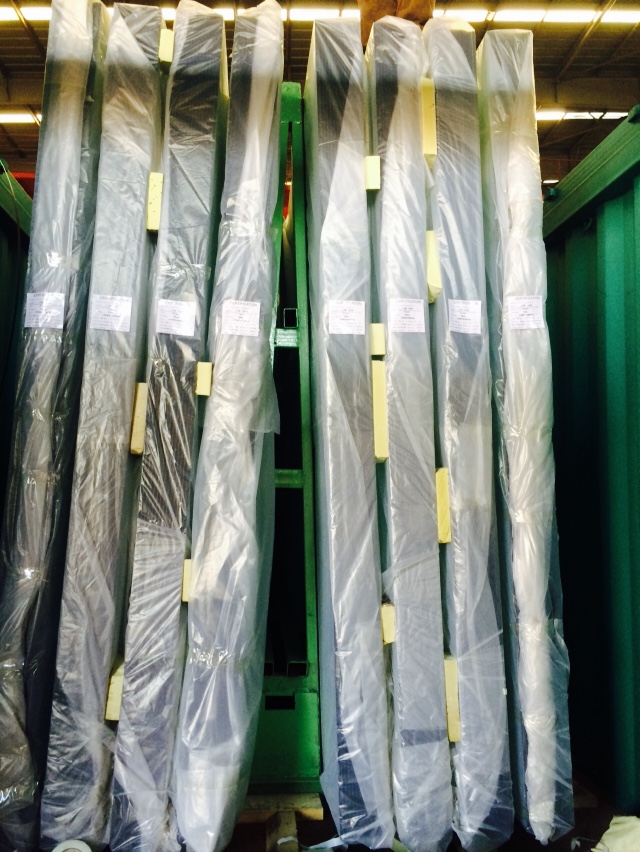

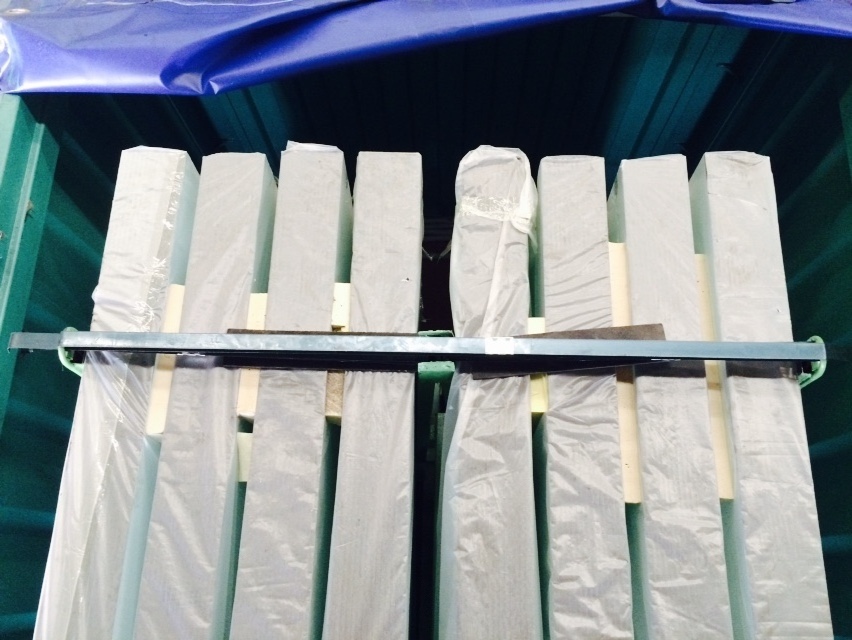

A-frame loading
˙Make sure the distance between outside of block to inside of container wall no less than 350mm.
˙The interleaving foam match 40mm.
˙To avoid temperature differences in both hemispheres, 4 bags of weight 1 kg moisture proof powder added through front to back of the container.

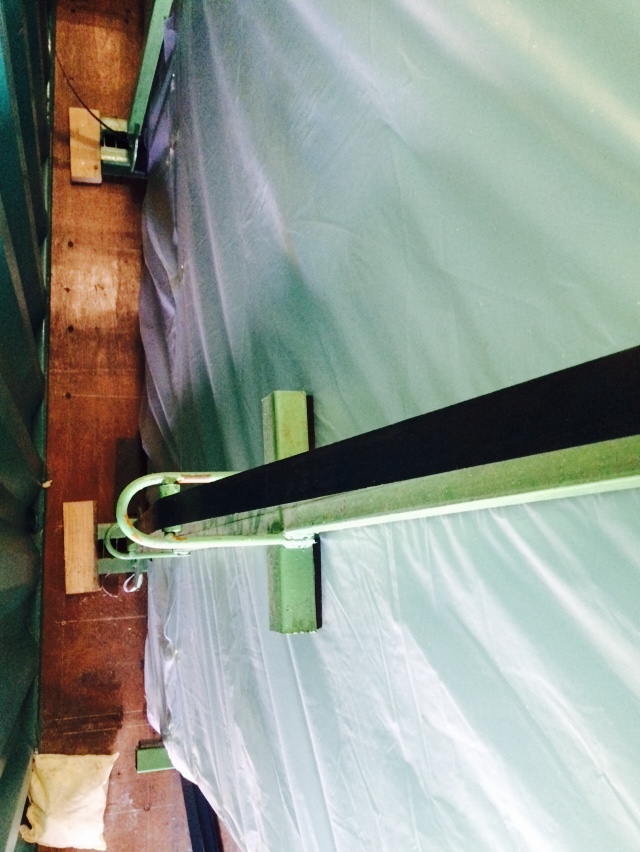

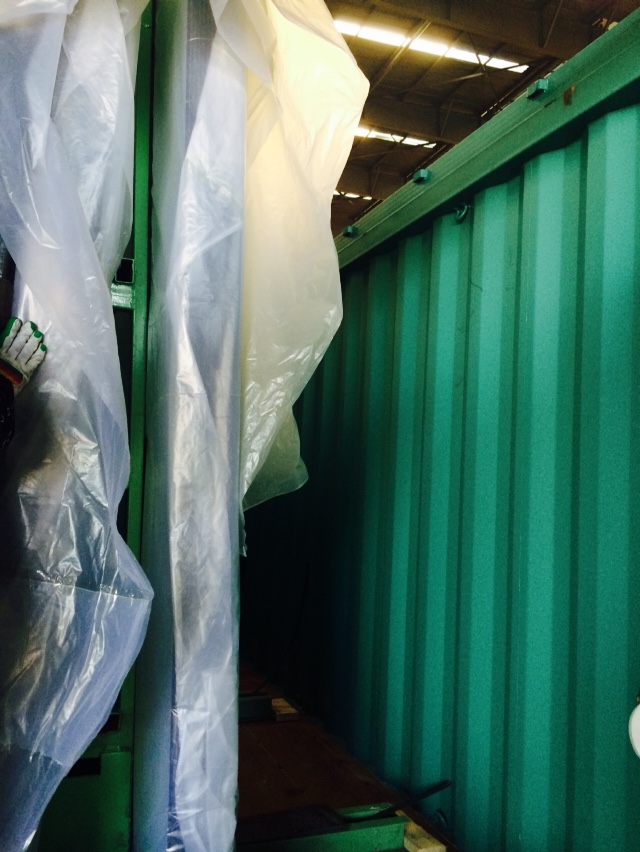

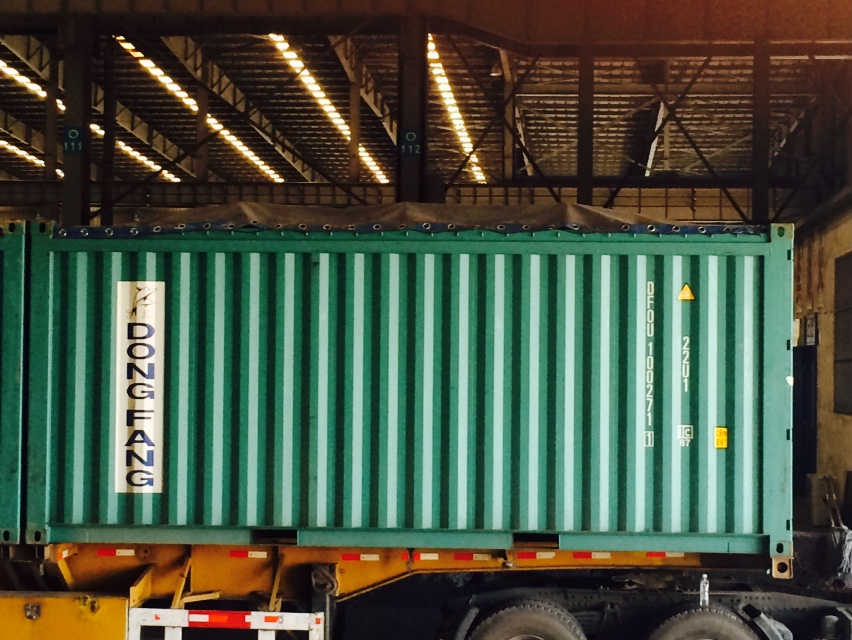

˙Triple tarpaulins for over height loading, 1st covered with thick plastic, 2nd covered with original tarpaulin from shipping company, 3rd is custom made by us with weight 600g per square meter.
